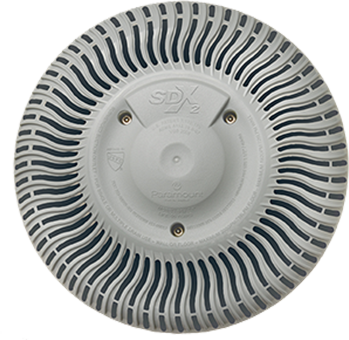

SDX High Flow Safety Main Drain

SDX2 is a high flow suction outlet suitable for use as a wall fitting, or as a floor fitting when debris removal
is not a concern. Available for concrete, vinyl and fiberglass pools, SDX2 performs at a very high flow rate
while operating at one of the lowest velocity ratings in the industry. SDX2 boasts a flow rating of 188 gpm
on the floor and 154 gpm on the wall.

• NO SUMP REQUIRED = TIME SAVED. No need to field fabricate a sump to meet the ‘1.5 times
the pipe diameter’ requirement.
• Low velocity 1.396 feet per second at the maximum (188 gpm) flow rating.
• Patented ribbed design achieves very high flow via 60 independent flow partitions.
• Approved as a bulkhead fitting as the safety is in the cover and back plate.
• Anti-vortex center shield blocks contact with direction suction.
• SDX2 comes with a plaster ring for new applications.
